MODEL: AC100TN4DKC/EA-48BTU Copied!

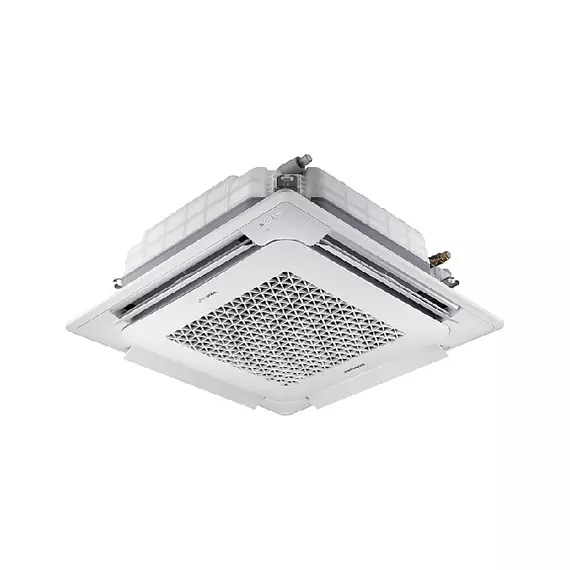

Samsung Cassette Inverter Wind Free AC, 48K BTU, Energy Saving, Big Blade, Motion Detect Sensor, Turbo Fan, Built In Darin Pump, Pipping Kit Included AC100TN4DKC/EA-48BTU
Sh6,831,000.00
Features:
- Wind-FreeTM
- Energy Saving
- Big blade
Stay cool without direct wind
WindFree™
WindFree™Cooling effectively maintains a comfortable level of coolness without the unpleasant feeling of cold wind.Cool air is gently dispersed through 15,672 micro air holes, so you won’t feel too hot or cold.
* PC4SUFMAN(4way 600*600) : 8,976 micro hole, PC4NUFMAN(4way) : 15,672 micro hole
Energy saving with WindFree™ Cooling
Energy Saving
WindFree™ Cooling allows efficient energy saving up to 55%.
* Tested on Outdoor unit AC140MXADKH, Indoor unit AM140FN4DEH when running simultaneously. Individual result may vary depending on consumer usage.
Wider cooling range
Big Blade
Big and optimized blades enable even wider cooling range.
* Tested on Indoor unit AM140FN4DEH when running. Individual result may vary depending on consumer usage.
Optimized operation by MDS
Motion Detect Sensor
Motion Detect Sensor enables customized air flow and energy effcient operation.
- Capacity: 3.0 / 10.0 / 12.0 kW
- EER (Nominal Cooling): 3.20
- Net Dimensions (WxHxD) (mm): 940 x 998 x 330 mm
Specifications Detail
Features
- Type: 10kW-1Φ-4Way
Model Name
- Indoor Unit: AC100TN4DKC/EA
- Outdoor Unit: AC100TXADKC/EA
System
- Mode: COOLING ONLY
Capacity
- Cooling [kW]: 3.0 / 10.0 / 12.0 kW
Current Input (Nominal)
- Cooling 1): 3.0/14.8/20.4 A
Power
- MCA [A]: 26.0 A
- MFA [A]: 30.0 A
Energy Efficiency
- EER (Nominal Cooling): 3.20
Piping Connections
- Liquid Pipe (Φ, mm): 9.52 mm
- Liquid Pipe (Φ, inch): 3/8"
- Gas Pipe (Φ, mm): 15.88 mm
- Gas Pipe (Φ, inch)5/8"
- Installation Max. Length [m]: 50 m
- Installation Max. Height [m]: 30 m
Field Wiring
- Transmission Cable: 0.75↑
Refrigerant
- Type: R410A
- Control Method: EEV
- Factory Charging (kg): 3.00 kg
Power Supply (Indoor Unit) [Φ, #, V, Hz]
- 1,2,220-240,50
Fan
- Type: Turbo
- Motor (Output) [W]: 97 W
- Number of Unit (EA): 1 EA
- Air Flow Rate (High / Mid / Low) [CMM]: 30.3/24.3/19.4 CMM
Drain
- Drain Pipe (Φ,mm): VP25 (OD 32,ID 25)
Sound
- Sound Pressure (High / Mid / Low) [dB(A)]: 43/38/33 dBA
External Dimension (Indoor Unit)
- Net Weight: 20.0 kg
- Shipping Weight (kg): 23.5 kg
- Net Dimensions (WxHxD) (mm): 840 x 288 x 840 mm
- Shipping Dimensions (WxHxD) (mm): 898 x 357 x 898 mm
Panel Size
- Panel model: PC4NUFDAN
- Panel Net Weight (kg): 6.3 kg
- Shipping Weight (kg): 8.7 kg
- Net Dimensions (WxHxD) (mm): 950 x 48 x 950 mm
- Shipping Dimensions (WxHxD) (mm): 1010 x 117 x 1000 mm
Additional Accessories
- Drain Pump: Built-in
- Drain Pump Max. Lifting Height/Displacement: 750 /24
Power Supply (Outdoor Unit) [Φ, #, V, Hz]
- 1,2,220-240,50
Compressor
- Type: Twin BLDC Rotary
- Model: UG8T300FUBJU
- Output(kW): 2.82 kW
- Oil (Type): POE
- Oil (Initial Charge) [cc]: 1200 cc
Fan (Outdoor Unit)
- Air Flow Rate (Cooling) [CMM]: 76 CMM
Sound (Outdoor Unit)
- Sound Pressure (Cooling / Heating) [dB(A)]: 53 dBA
External Dimension (Outdoor Unit)
- Net Weight: 71.0 kg
- Shipping Weight (kg): 76.0 kg
- Net Dimensions (WxHxD) (mm): 940 x 998 x 330 mm
- Shipping Dimensions (WxHxD) (mm): 995 x 1096 x 426 mm
Operating Temp. Range
- Cooling (℃): -15 ~ 50 ℃
Smart
- WiFi Kit: Yes
App Connectivity
- SmartThings App Support: Yes
| Brand | SAMSUNG |
|---|---|
| Size | |
| AC Type | Cassette |
