Samsung Interactive Display 65” Flip Pro, WMB Series, Fast & multi-touch, 3-in-1 USB-C port, Video call applications- Multi -Touch – LH65WMBWLGCXUE

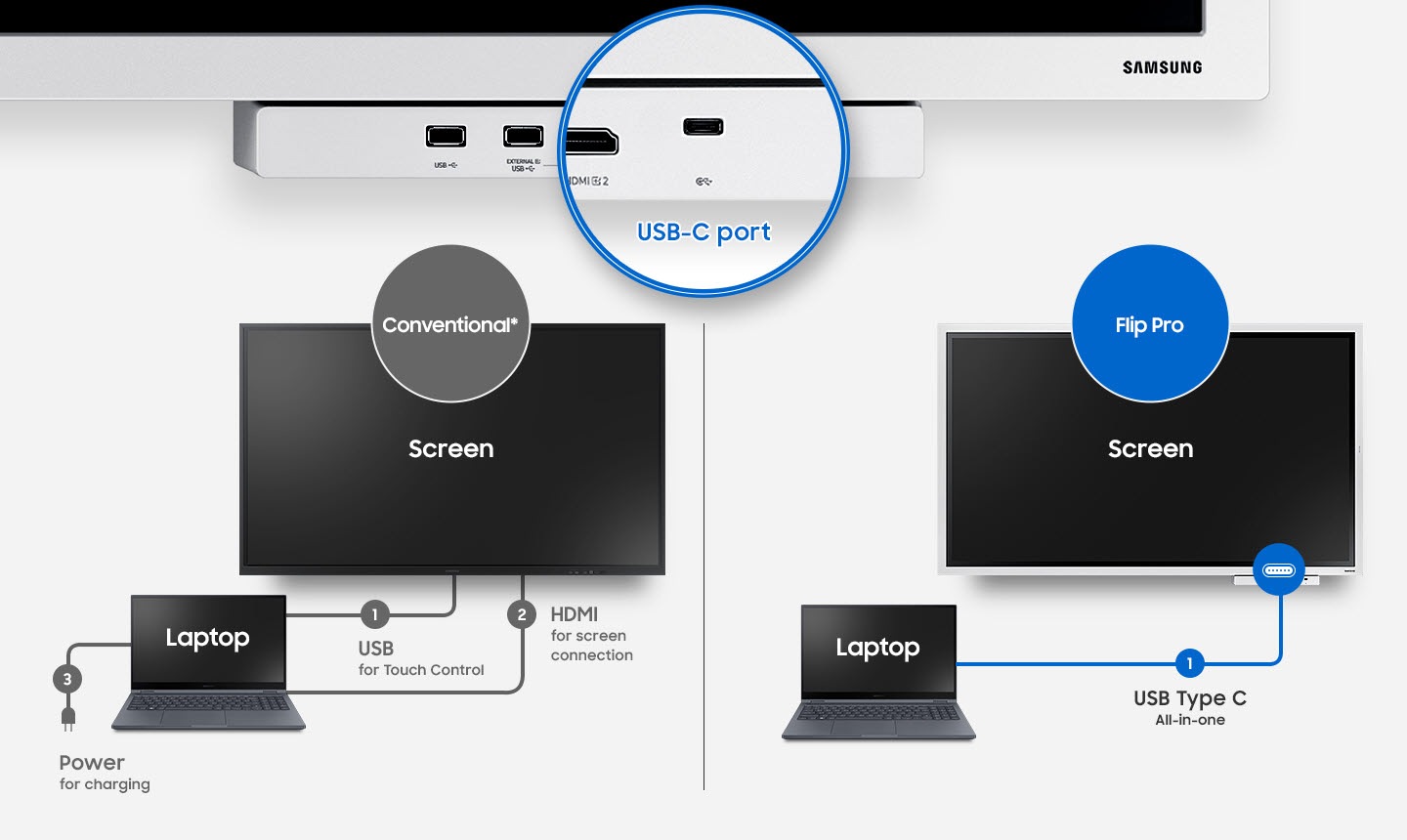

The Samsung Interactive Display WMB Series 65″ is designed to enhance interactive collaboration in educational and business environments. With its fast and multi-touch capabilities, it offers a smooth and realistic drawing experience. The display supports up to 20 touch points, making it ideal for group activities and presentations. It features versatile connectivity options, including USB, HDMI, and DP, allowing easy access to content from various devices. The 3-in-1 USB-C port enhances connectivity by enabling screen mirroring, touch control, and device charging. Integrated with AirPlay 2, the display allows wireless sharing from multiple devices, ensuring no one misses out on important information.

Full Specification

Features

• Fast & Multi-Touch: Industry-best latency at just 26ms for a smooth drawing experience.
• Versatile Connectivity: Multiple options including USB, HDMI, DP, and 3-in-1 USB-C port.
• AirPlay 2 Integration: Wireless sharing from multiple devices for enhanced collaboration.

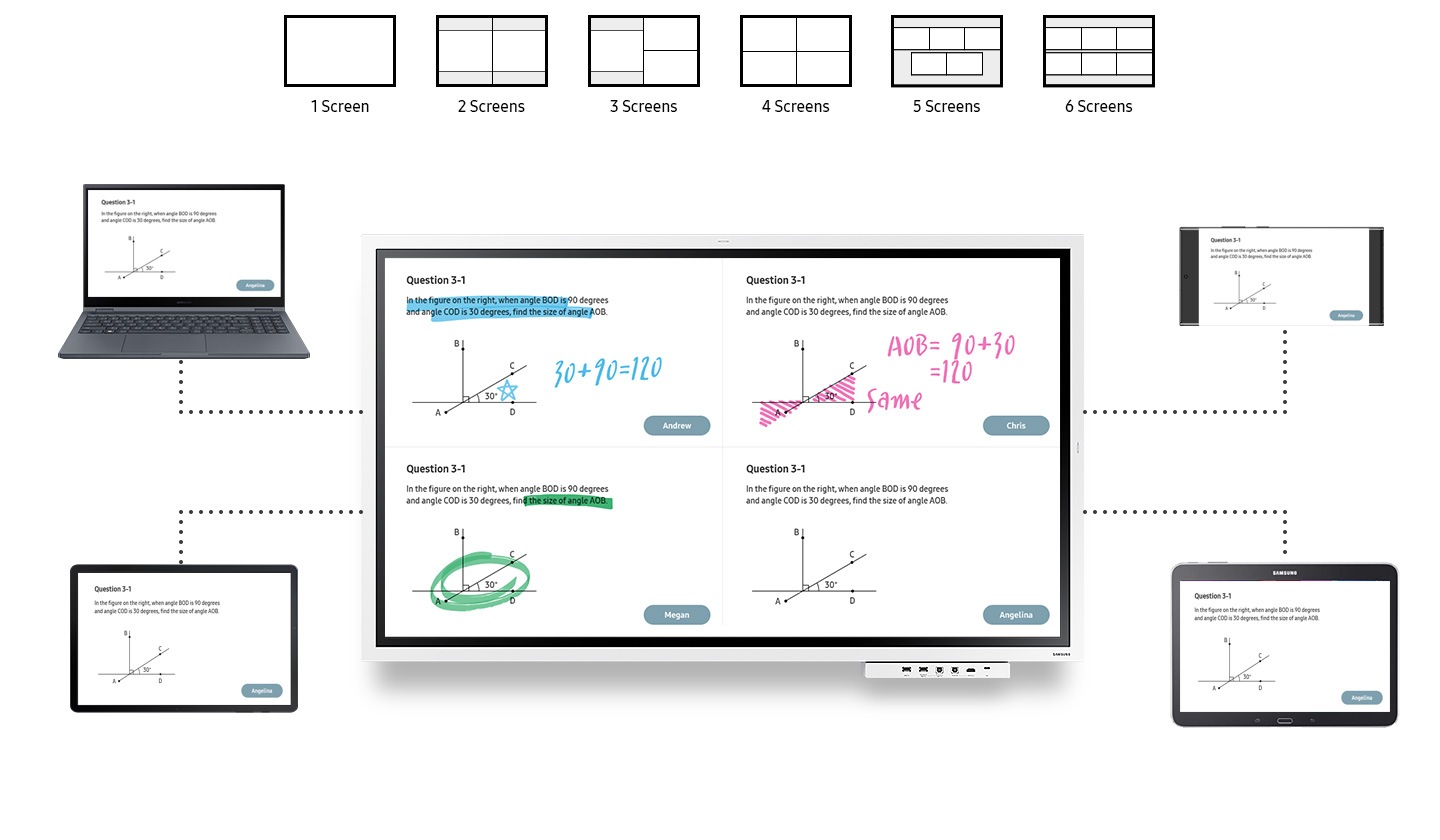

• SmartView+: Connect up to 50 devices wirelessly and enable multi-view on up to four screens.
• Workspace: Access remote PC, network drive, and third-party applications like Office 365.

Display

• Diagonal Size: 65″
• Panel Type: VA
• Resolution: 3,840 x 2,160
• Pixel Pitch (HxV): 0.372 x 0.372 (mm)
• Brightness (Typ): 350 (w/o glass), 220 (w/glass)
• Contrast Ratio: 4000:1 (without glass)
• Viewing Angle (Horizontal/Vertical): 178/178
• Response Time: 8 ms
• Colour Gamut: 72>#/p###
• Glass Haze: 2% (without glass)
• H-Scanning Frequency: 30~81 kHz
• Maximum Pixel Frequency: 594 MHz
• V-Scanning Frequency: 48~75 kHz
• Operation Time Support: 16/7

Connectivity

• HDMI In: 2
• DP In: 1
• Version of HDMI: 2
• Version of DP: 1.2
• Version of HDCP: 2.2
• USB: 1 (Rear), 3 (with optional front tray, Internal 1, External 1, USB-C 1)
• Audio Out: Stereo Mini Jack
• RS232 In: Yes
• RJ45 In: Yes
• WiFi: Yes
• Bluetooth: Yes

Power

• Power Supply: AC100-240 V 50/60 Hz
• Power Consumption (On Mode): 192.5 W
• Power Consumption (Sleep Mode): 0.5 W

Dimensions & Weight

• Set Dimension (WxHxD): 1522.4 x 897.6 x 62.9 mm
• Package Dimension (WxHxD): 1691 x 1055 x 198 mm
• Set Weight: 39.7 kg
• Package Weight: 48.2 kg

Operation Conditions

• Temperature: 0℃~40℃
• Humidity: 10 ~ 80%, non-condensing

Mechanical Specification

• VESA Mount: 400 x 400 mm
• Bezel Width: 26.2 mm
• Frame Material: Plastic

Optional Feature

• Touch: Yes
• Mount: Yes (Model Name: WMN-WM65R)

SoC

• OS Version: Tizen 6.5
• Flash Memory Size: 32 GB

Touch

• Touch Technology: IR

Certification and Compliance

• EMC:
  • Class A FCC (USA) Part 15, Subpart B
  • KCC/EK (Korea) Tuner: KN32 / KN35
  • Tunerless: KN32 / KN35
  • CE (Europe) EN55032: 2012 or 2015
  • EN55024:2010 or EN 55035:2017
  • VCCI (Japan) VCCI CISPR32:2016
  • CCC (China) GB/T9254-2008
  • GB17625.1-2012
  • BSMI (Taiwan) CNS13438 (ITE EMI)
  • CNS14336-1 (ITE Safety)
  • CNS15663 (RoHS)
  • C-Tick (Australia) AS/NZS CISPR32:2015
  • GOST (Russia/CIS) ROCT CISPR 24-2013
  • ROCT CISPR 22:2005
• Safety:
  • CB (Europe): IEC60950-1/EN60950-1
  • CCC (China): GB4943.1-2011
  • PSB (Singapore): PSB+IEC60950-1
  • NOM (Mexico): NOM-001-SCFI-1993
  • IRAM (Argentina): IRAM+IEC60950-1
  • SASO (Saudi Arabia): SASO+IEC60950-1
  • BIS (India): IEC60950-1 / IS13252
  • NOM (Mexico): Tuner: NOM-001-SCFI-1993
  • Tunerless: NOM-019-SCFI-1998
  • KC (Korea): K 60950-1
  • EAC (Russia): EAC+IEC60950-1
  • INMETRO (Brazil): INMETRO+IEC60950-1
  • BSMI (Taiwan): BSMI+IEC60950-1
  • RCM (Australia): IEC60950-1/AS/NZS 60950-1
  • UL (USA): cUL60950
